40G DPSK DQPSK Balanced Optical Receivers

Contact Us and PDF Datasheet Request
Datasheet Request Contact Us


The DSC-R410 balanced receiver product family is ideally suited for a variety of applications up to 40 Gb/s such as DPSK, DQPSK and Dual Polarization DPSK. The DSC-R410 is available in two configurations: balanced receiver module and Discovery's plug-and-play Lab Buddy instrument.
The DSC-R410 module consists of a pair of balanced photodiodes and a high-gain limiting transimpedance amplifier, which also has a unique peak detector function. The DSC-R410 has a very high conversion gain of 1800 V/W, excellent OSNR performance and operation up to +1dBm optical input power. The R410 is available with differential GPPO RF outputs and utilizes Discovery's high-reliability InGaAs photodiode technology.

DSC-R410: 40 Gb/s High-Gain Balanced Optical Receivers

Fig1: DSC-R410

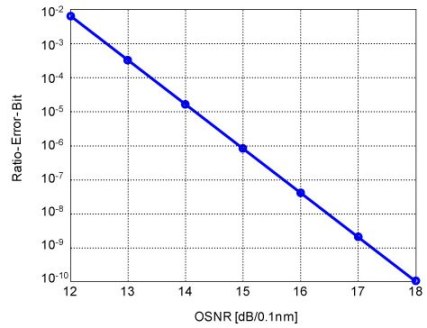

DSC-R410 - 42.8 Gb/s RZ-DPSK BER vs. OSNR Plot

Fig2: 42.8 Gb/s RZ-DPSK BER vs. OSNR:
{0dBm Optical Input each PD}

Salient Features:

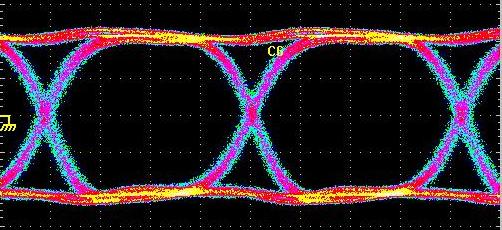

Demodulated 48 Gb/s RZ-DQPSK Eye Pattern for DSC-R410

Fig3: Demodulated 48 Gb/s RZ-DQPSK Eye Pattern

X Axis: 10 ps/divY Axis: 100 mV/div

Available Models:
