100G/200G/400G Coherent Optical Receivers
Discovery's Coherent Optical Receivers are designed for 100 Gb and upcoming 200 Gb and 400 Gb fiber optic
communication systems. Optical Dual Polarization QPSK (DP-QPSK) and 16 QAM modulation formats are detected and
converted to electrical signals that can be fed to a digital storage scope, or even a sampling scope. Our
Coherent Lab Buddy is a user friendly lab instrument, which allows our customers to start doing their valuable
experiments in a very short period of time.
AGC Balanced PIN + TIA Optical Receiver
- Adjustable differential transimpedance gain (50 to 4000 ohms)
- Adjustable differential output voltage (200 to 700 mVp-p)
- Wide optical dynamic range of -16 to +2dBm
- Wavelength Range of 1064 to 1650 nm
- Excellent DPSK Eye Pattern quality

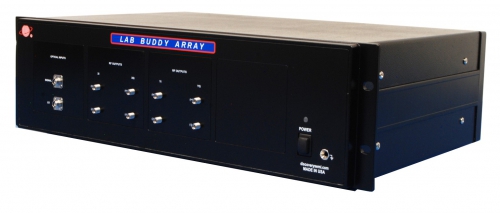

Coherent Receiver Lab Buddy
- Easy-to-use lab instrument
- Four well-matched Linear Balanced PIN/TIA Photoreceivers
- Integrated Dual-Polarization 90 Degree Optical Hybrid
- Two modes of operation: Automatic and Manual Gain Control
- Adjustable differential gain
- Adjustable RF bandwidth for all channels
- Dual Polarization I/Q Transmitter Characterization
- Intradyne Link Testing
- High Speed ADC and DSP Development
