10 GHz Linear InGaAs PIN+TIA Optical Receiver with Optional CDR

Contact Us and PDF Datasheet Request
Datasheet Request Contact Us


The DSC-R402PIN is a linear and versatile PIN + transimpedance (TIA) amplifier suited for a variety of digital and analog applications. The R402PIN offers a linear response to > 0 dBm optical input, 1.8Vp-p of linear output voltage, +10dBm of RF output power, 10 GHz of RF bandwidth and a conversion gain of 400 V/W. The R402PIN is available in both a K-connector package and a miniature surface mount package with CPW (coplanar waveguide) RF output, and utilizes Discovery's high-reliability InGaAs photodiode technology.

The DSC-R402 Lab Buddy is also available with an optional clock and data recovery (CDR) unit, which provides a 3R solution with a jitter tolerance of 0.6 UIp-p and conviniently interfaces with bit error rate (BER) test stations.

10 GHz Linear PIN + TIA Optical Receiver     DSC-R402PIN Lab Buddy. For busy test stations or student labs, where users of different experience levels might be handling high value opto-electronics that are easily damaged by mishandling, order your photodiode to be mounted in the Lab Buddy

Fig1: DSC-R402 Linear InGaAs PIN+TIA Optical Receiver with Lab Buddy

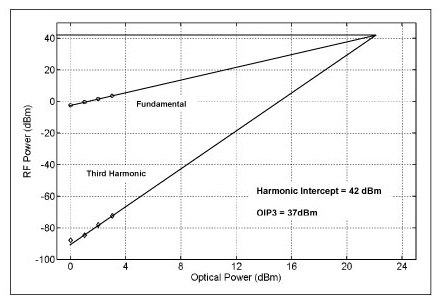

DSC-R402 Third Order Harmonic Intercept

Fig2: Third Order Harmonic Intercept

Salient Features:
  • ~10 GHz RF bandwidth
  • Linear gain to > 0 dBm optical input
  • Linear output voltage of 1.8Vp-p
  • Sensitivity of -19 dBm at 10 Gb/s
  • Overload of +4 dBm at 10 Gb/s
  • High Responsivity at 1310nm, 1550nm & L-band
  • AC or DC-coupled versions available
  • 850nm and multimode fiber (MMF) versions available
  • Low optical PDL @ 1550nm (typically 0.05dB)
  • K-connector or surface mount package options
  • Clock and Data Recovery (CDR)
  • Meets GR-468 reliability standard
  • Digital telecom systems up to 13 Gb/s
  • Low distortion, high dynamic range analog RF links over fiber
  • Rapid Doppler-shift LIDAR measurements
  • Coherent lightwave systems
  • Ideal front-end O/E converter for test instruments
  • Military communications
Available Models:
  • DSC-R402PIN - 10 GHz Linear PIN + TIA singlemode Optical Receiver
  • DSC-R402PIN - 10 GHz Linear PIN + TIA multimode Optical Receiver
  • DSC-R402PIN - 10 GHz Linear PIN + TIA + CDR Optical Receiver

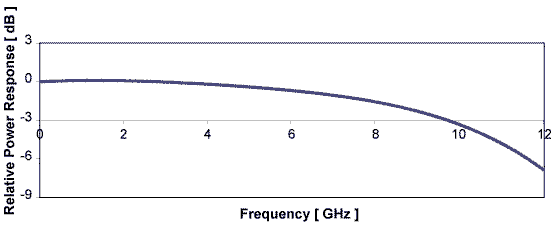

DSC-R402PIN Frequency Response Curve

Fig3: Frequency Response Curve
